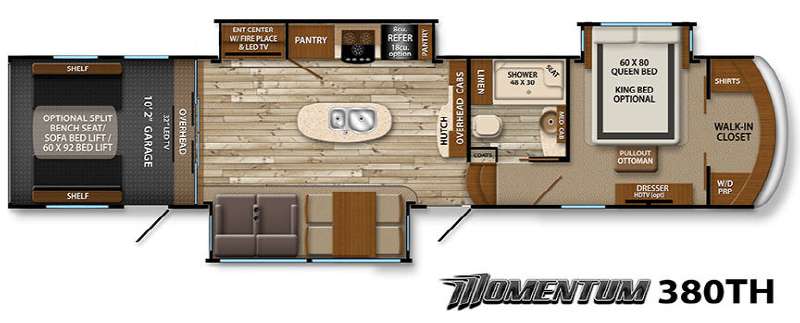

Floorplan - 2015 Grand Design Momentum 380TH
-
-
-

380TH Floorplan
Specifications
Sleeps | 6 | Slides | 3 |
Length | 42 ft 2 in | Ext Width | 8 ft 5 in |
Ext Height | 13 ft 5 in | Hitch Weight | 2950 lbs |
GVWR | 19500 lbs | Dry Weight | 15300 lbs |
Cargo Capacity | 4200 lbs | Fresh Water Capacity | 124 gals |
Grey Water Capacity | 100 gals | Black Water Capacity | 62 gals |
Tire Size | ST235/80R16 LRE | Furnace BTU | 40000 btu |
VIN | 573FM4230F1103282 |
Description
Grand Design Momentum 380TH - Fifth wheel toy hauler highlights:
This Grand Design Momentum toy hauler fifth wheel model 380TH is the perfect way to get you and your toys to and from each adventure! This unit features triple slides for added space, a walk-in closet, an 10' 2" garage, dual entry doors, and a convenient kitchen island, plus more!
The rear 92" x 96" rear ramp door makes loading and unloading a cinch. Inside the garage space find an optional split bench seat/sofa bed lift with 60" x 92" bed lift for ample seating during the day and sleeping space at night for family and friends once you are parked and the toys are removed. You can also enjoy a 32" LED TV and overhead storage in this space, plus shelf on either side for storage.
Head into the main living space from inside the cargo garage, or use the main side entry door. The cargo area also features a side man door for easy access once the rear ramp door is closed. Once inside the main living area notice the spaciousness that the dual slide outs create. There is theater seating and a dining table and chairs along the door side slide out. A hutch with overhead cabinets is found straight in from the side entry door.
Opposite the door side enjoy a kitchen which features a slide out refrigerator, s three burner range, overhead storage, a pantry, and entertainment center with fireplace below the LED TV. There is also a center island for added counter space, plus a double kitchen sink as well.
Head up the steps in front to a side aisle bath with toilet, vessel sink and medicine cabinet, plus a 48" x 30" shower including seat and linen cabinet too.
The front offers a private bedroom with slide out queen bed, or optional king if you choose. There is a pull out ottoman at the foot of the bed, plus a dresser for clothing along the opposite wall. You can also add an optional HDTV above the dresser if you would like. Find plenty of storage in the front walk-in closet with shirt storage and one side. The opposite side has been prepped for a washer and dryer, plus so much more!
Features
- 46" – 48” LED HD Main TV
- AM/FM/CD/DVD Entertainment System w/Bluetooth & 3 Zones
- LED Puck Lighting Throughout
- 30" Residential Stainless Steel Microwave
- Solid Surface Counters (Kitchen Area)
- 12 Gallon Quick-Recovery DSI Water Heater
- 3-Burner Range w/High-Output Burner
- 22" Stainless Steel Oversized Oven
- Power Fan w/Rain Sensor (Galley Area)
- Large Pantry (All Models)
- Wood Trimmed Marble Mosaic Back Slash
- Tinted Windows w/Night Shades
- Pre-Wired & Braced for 2nd A/C (Bedroom)
- Pre-Wired & Braced for 3rd A/C w/Energy Management System (Garage)
- Stainless Steel 60/40 Kitchen Sink
- Central Command Center
- "Comfort Control" Thermostat w/3-Zone Features
- Blue Accent Lighting (Main Living Area)
- Hardwood Cabinet Doors w/Residential Styled Hidden Hinges
- Coat Closet at Entry Door
- 60” x 80” I-Relax Bedroom Mattress (King Option)
- Individually Switched Reading Lights
- Walk-In Style Front Closet w/Washer Dryer Prep
- Full-sized Bedroom Dresser
- 110V Outlets
- Bed Sides Outlets (Both Sides)
- TV Cable & Sat Prep in Bedroom
- Pull-Out Ottoman at Bed Base
- Storage Area Under Bed Pedestal w/Jewelry Tray
- One-Piece Fiberglass "Maxi-Shower" w/Seat
- Three Panel Glass Shower Door
- Porcelain Toilet
- Residential Vessel Sink
- Medicine Cabinet w/Mirrored Door
- Power Fan in Bathroom
- Heat & A/C Vents in Bathroom
- Heat & A/C Vents in Bedroom
- Shower Skylight
- GFI Receptacles
- Loft Mattress w/Curtain
Exterior Package
- Frameless Windows
- Dual Entry Doors
- 7,000lb Axles
- Ultra Lube Hubs
- 16” Aluminum Wheels w/Black Accents
- E-Rated HD Tires (7,040 LB Capacity/Axle)
- NitroFill – Nitrogen Filled Tires (Run Cooler, Last Longer & Helps Avoid Issues)
- Dual Fuel Tanks w/Gauges (Fuel Pump and Generator)
- Built-in Pump Station Timer Switch
- Exterior Utility Center w/Winterize & Sanitize Systems
- Water Heater Bypass
- Whole-House Water Filter System
- 50 AMP Service
- 75 AMP Converter System
- 1 ½” Thick Slam-Latch Baggage Doors
- Generator Prep w/Hour Meter & Start Switch
- Exterior Security Lights
- Colored High-Gloss Gel Coat Exterior
- Painted Front Cap
- Satellite Prep (To each TV location)
- 12V Battery Disconnect
- 32" LED HD TV w/Theater System Sound Bars & Adjustable TV Mount
- AM/FM/CD/DVD Entertainment System
- Heat & A/C Vents in Garage
- 24" Protective Diamond Plate
- Dovetail Rear Storage Box (Full Width)
- 2,500LB Rated Flush-mounted Tie- Downs (All Anchored into Chassis)
- Aluminum Ram-Air Vents (Both sides)
- Tuff-Ply Gas/Oil Resistant Flooring
- 8' Spring-loaded Rear Ramp Door
- Rear Cargo Loading Lights
- Night Shades w/Valance Tops
- Garage Central Control Panel
- LED Puck Lighting
- Electric Garage Patio Awning
- Aluminum "No Rust" Easy Open Entry Steps
- LED Safety Lighting Package
- Trail-Air Roto-Flex Pin Box (21k)
- Trail-Air Equa-Flex Adjustable Suspension
- Correct Track Alignment System
- Hydraulic Front Landing Gear
- Electric Rear Stabilizing Jacks (without 6-Point Leveling)
- Washer/Dryer Prep w/Split Location for Stackable (Bedroom)
- Central Vacuum System w/Dust Pan &
- LED Light
- Electric Patio Awnings w/LED Lighting
- Collapsible Roof Ladder
- Heated Underbelly, Pass-thru Storage Area & Exterior Utility Center
- Vented Attic
- R-40 Roof Insulation
- R-45 Floor Insulation w/Insulated I-Beams in Tank Area
- R-24 Slide Floor Insulation
- R-25 Garage Floor Insulation
- R-11 Wall Insulation
- Engineered Underbelly Airflow Paths
- Plumbing Line Insulation Barrier
- Insulated Heat & A/C Ducts
- Ducted Heat to Garage
- Residential Furniture w/Heat, Massage & LED Accent Lighting (All Seats Recline)
- Upgraded Residential Kitchen Faucet
- Solid Surface Range Covers
- Residential Style Headboard
- Soundbar (380TH)
- Digital TV Antenna w/Booster
- Washer/Dryer Prep (Room for Stackable)
- Full Wall Double Sliding Glass Patio Door (380TH)
- Residential Style Metal Framed Glass Garage Door (385TH)
- LED Docking Lights
- 110V Outlets
- Upgraded Graphics w/3 Year Warranty
- Fireplace (5,000 BTU Electric Heater)
- 12V Tank Heaters w/Interior Switch
- Under-Carriage 16” Spare Tire & Carrier
- 8’ Under Unit Blue LED Lighting Kit (Both sides)
- Stainless Steel 18 cu. ft. 4-Door Refer (Residential Size)
- Generator Prep (Forced W/O Generator Option)
- Generator- Onan 5.5KW Gasoline Generator
- 2nd AC Bedroom 13.5K BTU
- 3rd AC Garage 13.5K BTU
- Heat Pump AC (Living Room)
- Dual Pane Windows
- Garage MaxxAir (n/a w/3rd AC)
- Bathroom MaxxAir Fan
- Convection Microwave
- King Bed Upgrade
- Super Sofa Upgrade (380TH Only)
- Bedroom TV w/Exterior TV Swing Arm
- Happi-Jac Electric Bunk System w/Folding & Removable Sofas
- Rear Aluminum Deck/Patio System
- Rear Box Awning (Over Patio)
- Momentum Patio Steps w/Hand Rail
- Pull Down Garage Screen Wall (N/A w/3 Season Garage Wall)
- 3 Season Garage Wall
- Removable Carpet Kit
- Swivel Rocker Recliner (Garage)
- Momentum Patio Chairs
- 6-Point Hydraulic Leveling System
- Back-Up Camera
- MorRyde Cord Reel
- Slide-Out Toppers (Triple Slide)
